napari plugin

The SMINT napari plugin covers the hands-on part of registration. You load two datasets, line them up roughly by eye, place matching landmarks, and send the registration to a SLURM job or a local worker without leaving the viewer. The plugin has four dock widgets, numbered in the order you use them. This page goes through each one: every control, what it writes to disk, and the mistakes that most often cost an afternoon.

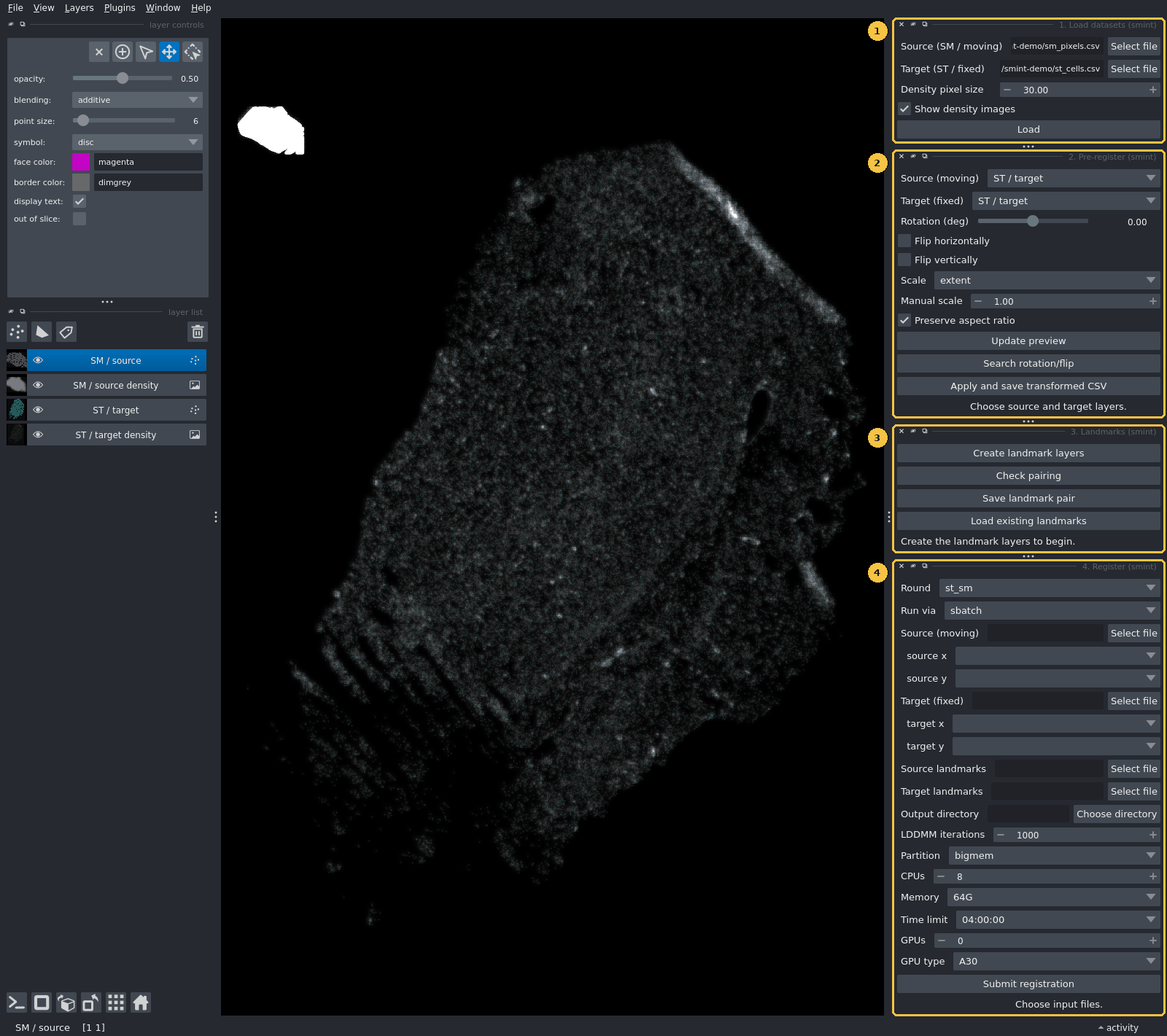

The four SMINT widgets docked in napari after 1. Load datasets: (1) Load datasets, (2) Pre-register, (3) Landmarks, (4) Register. The canvas shows a Sample 2 Xenium section (grey density) with the MALDI section still in its own pixel grid (white blob, top left). Screenshots on this page were taken with napari 0.5.5.

Widget	Use it to	Writes
1. Load datasets	Show a source and a target table as Points layers, with optional density images	nothing
2. Pre-register	Coarsely scale, rotate and flip the source onto the target	<name>.csv + <name>.pretransform.json
3. Landmarks	Place, check and save paired landmarks	<prefix>_sm_points.npy, <prefix>_st_points.npy
4. Register	Submit the registration and load the result back	a job directory with job_spec.json, status.json, logs and the transformed CSV

Which widgets you need

Sequential sections (for example Xenium and MALDI on neighbouring sections) use all four widgets and the st_sm round, which runs STalign LDDMM from your landmarks. The same section (post-Xenium staining segmented into nuclei) needs only widgets 1 and 4, with the centroid round. That round matches centroids itself, so you place no landmarks. For help choosing, see Choosing a registration method.

Install and launch

You need two Python environments. They cannot be merged.

• The napari environment runs the viewer and the widgets. napari works with numpy 2.
• The worker environment runs the registration. The st_sm round needs STalign, and STalign needs numpy < 2. This environment must also have SMINT installed, because the worker imports smint and does not inherit your PYTHONPATH (see How it fits together).

napari environmentWorker environment

python -m venv napari-env
napari-env/bin/pip install "napari[pyqt5]"
# SMINT's own dependencies include Cellpose and torch, which the plugin does not use:
napari-env/bin/pip install --no-deps -e /path/to/SMINT

napari already brings numpy, pandas, scipy and magicgui, which are all the plugin imports.

Set up the STalign environment described in Installation, install SMINT into it, and tell the plugin where its interpreter is. Set the variable before you start napari, because the plugin reads it when you click Submit:

export SMINT_WORKER_PYTHON=/path/to/stalign-env/bin/python
napari

If SMINT_WORKER_PYTHON is not set, SMINT looks for STalign_env/bin/python in the directory that holds your SMINT checkout. If it finds nothing there, it falls back to the interpreter napari itself is running in. That fallback is fine for the centroid round but fails for st_sm.

Open the widgets from Plugins → SMINT Registration. You can also dock all four from a script, which is how the screenshots on this page were made:

import napari

viewer = napari.Viewer()
for name in ("1. Load datasets", "2. Pre-register", "3. Landmarks", "4. Register"):
    viewer.window.add_plugin_dock_widget("smint", name)
napari.run()

How it fits together

The plugin never imports STalign. The Register widget writes a job spec to disk and starts a separate worker interpreter. The worker runs the registration and reports back through a status.json file, which the widget checks every 10 seconds.

flowchart LR
  subgraph NP["napari process (numpy 2, no STalign)"]
    direction TB
    W1["1. Load datasets"] --> W2["2. Pre-register"]
    W2 --> W3["3. Landmarks"]
    W3 --> W4["4. Register"]
  end
  W2 -- "Apply and save" --> PRE[("pre-registered CSV<br/>+ .pretransform.json")]
  W3 -- "Save landmark pair" --> LM[("prefix_sm_points.npy<br/>prefix_st_points.npy")]
  W4 -- "Submit" --> SPEC[("output_dir/job_spec.json")]
  SPEC --> RUN{"Run via"}
  RUN -- "sbatch" --> SB["submit.sh<br/>SLURM job"]
  RUN -- "local" --> LO["detached<br/>subprocess"]
  SB --> WK["worker interpreter<br/>python -m smint.cli.register job_spec.json<br/>(STalign env, numpy below 2)"]
  LO --> WK
  WK --> ST[("status.json<br/>+ transformed CSV")]
  ST -. "polled every 10 s" .-> W4
  W4 -. "adds the registered layer" .-> NP

There are three reasons for the split. napari and STalign need different numpy major versions, so they cannot share a process. A multi-minute LDDMM run in the background leaves the viewer responsive. And if a registration crashes, napari keeps running.

The batch and local paths differ only in how the worker starts. On both paths SMINT removes PYTHONPATH, PYTHONHOME, PYTHONSTARTUP and LD_PRELOAD from the worker's environment, so packages from the napari environment cannot get into the worker.

Everything a run produces lands in the Output directory you choose in widget 4:

File	When	Contents
job_spec.json	always	Round, inputs, parameters, SLURM resources and the worker interpreter. You can re-run it (see below).
status.json	always	state (submitted → queued or running → completed / failed), a message, and on success outputs and metrics
submit.sh	sbatch	The generated batch script
smint_<round>_<jobid>.out / .err	sbatch	Worker stdout and stderr
worker.log	local	Worker stdout and stderr
sm_transformed.csv	st_sm round	The SM table with x_transformed / y_transformed appended
centroids_transformed.csv	centroid round	The source table with transformed (and refined) coordinates appended

---

1. Load datasets

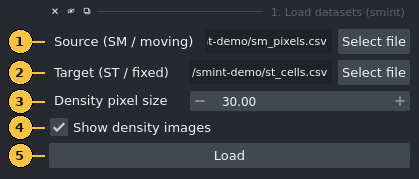

#	Control	What it does
1	Source (SM / moving)	The CSV that will be moved, such as the MALDI pixel table or segmented nuclei
2	Target (ST / fixed)	The CSV that stays put, such as the Xenium cells
3	Density pixel size	Bin size of the density images in coordinate units, 1–500 (default 30). One value is used for both datasets.
4	Show density images	Also adds a smoothed 2D histogram of each dataset (Gaussian sigma of 1 bin, grey, additive, 60 % opacity)
5	Load	Reads both files and adds the layers below, then resets the view

Clicking Load adds up to four layers: ST / target density and SM / source density (images), then ST / target (cyan points) and SM / source (magenta points).

Coordinate columns are detected automatically. The widget uses the first match in this list, ignoring case: x_final, x_centroid, centroid_x, x_transformed, x, X (and the y equivalents). Only those two columns are read. A 450 MB metabolomics matrix with hundreds of m/z columns therefore loads in seconds.

Display is capped at 200,000 points per dataset. Larger tables are randomly subsampled (fixed seed) for display only. The worker always reads every row.

Make the data visible

Points are drawn 6 coordinate units wide. On a whole section in µm that is smaller than a screen pixel, so the density images are what you actually see when zoomed out. To see the points, zoom in or raise point size in napari's layer controls. In the screenshots on this page, the point and landmark sizes were raised this way.

Different units in the two files

The density pixel size applies to both datasets. If the source is still in raw instrument pixels while the target is in µm, as in the overview above, the source density image comes out as a coarse blob. That is expected, and widget 2 fixes the scale.

---

2. Pre-register

Spatial metabolomics data usually arrives on its own pixel grid, and is often rotated or mirrored relative to the Xenium section. LDDMM cannot recover from a large orientation error, so first bring the source roughly onto the target.

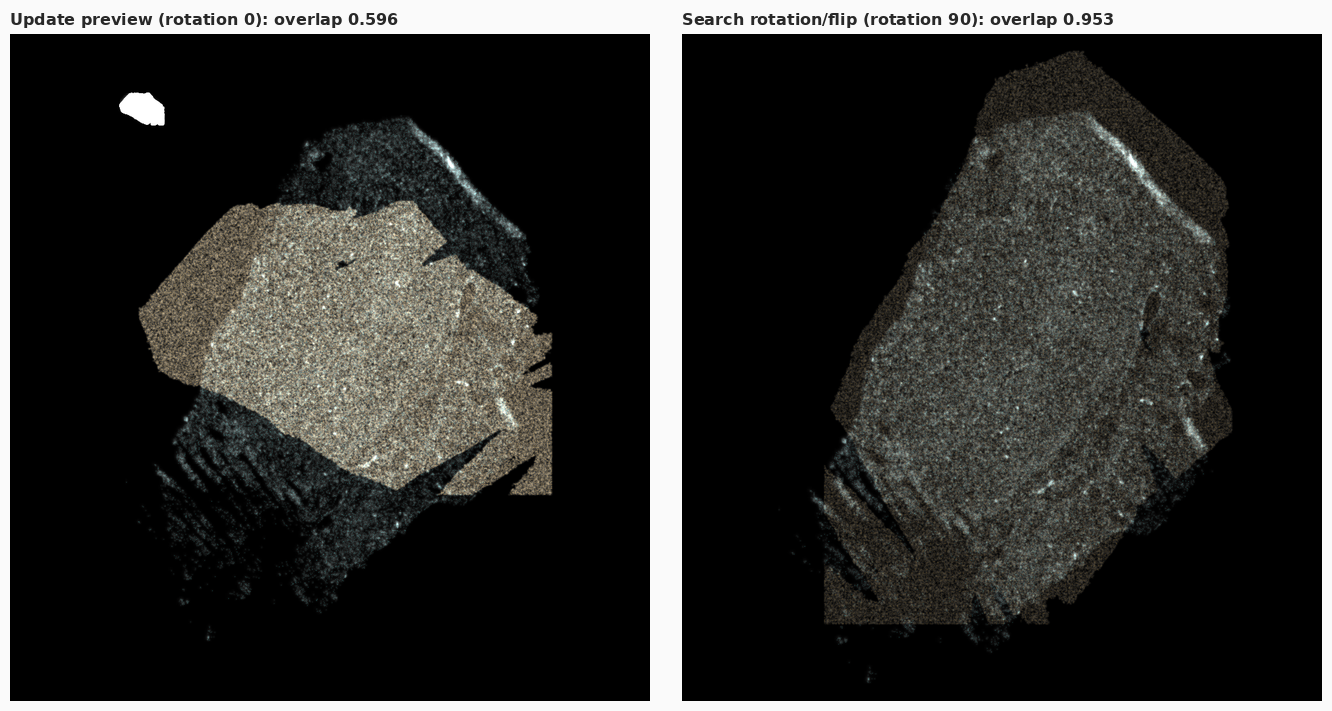

The orange Pre-registered preview layer over the Sample 2 Xenium section. Left: scale fitted, no rotation (overlap 0.596). Right: after Search rotation/flip (90°, scale 12.161, overlap 0.953). The leftover mismatch at the tissue edges is what the landmarks and LDDMM correct.

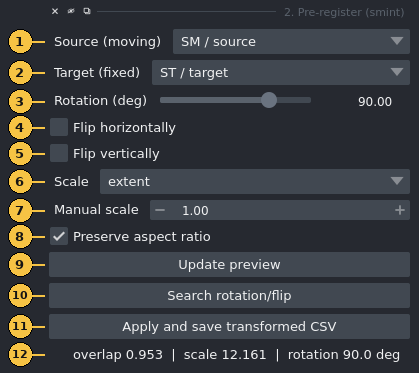

#	Control	What it does
1	Source (moving)	Any Points layer in the viewer. The list updates whenever layers are added or removed.
2	Target (fixed)	The Points layer to align to
3	Rotation (deg)	−180 to 180, counter-clockwise, about the source centroid
4	Flip horizontally	Mirror the source left–right
5	Flip vertically	Mirror the source top–bottom
6	Scale	extent matches the bounding-box span on each axis (default, robust to different origins). max matches the maximum coordinates, which only works when both datasets start near zero. none keeps the source scale. manual uses control 7.
7	Manual scale	An isotropic factor, used only when Scale is manual
8	Preserve aspect ratio	With extent / max, use one isotropic factor (the smaller of the two axis factors), so the tissue is not stretched
9	Update preview	Recompute the preview. Changing controls 3–8 also does this automatically.
10	Search rotation/flip	Try every 15° from −180° to 165° under all four flip combinations (96 candidates), keep the one with the highest overlap, and set controls 3–5 to match
11	Apply and save transformed CSV	Ask for the original source CSV and an output path, transform the coordinate columns of every row, and save
12	Status	The overlap score, fitted scale and rotation, plus reflected if the transform mirrors the data

The transform applies the flip first, then the rotation, then the scale, all about the source centroid. A final translation then puts the source centroid on the target centroid. Scale is fitted after orientation, because bounding-box extents change when the data rotates.

The overlap score is the fraction of occupied 50-unit target bins that the source also occupies, from 0 to 1, where higher is better. It needs no correspondences, so it is cheap enough to recompute every time you move the slider.

Apply and save writes two files: the transformed table, and a JSON file beside it with the same stem (for example sm_prereg.csv and sm_prereg.pretransform.json). The JSON records the 3×3 matrix, its decomposition (scale, rotation, reflection), and the slider and checkbox settings, so you can reproduce the coarse step later.

Pitfalls

• Pick the same file you loaded when Apply asks for the original source CSV. The matrix was fitted to the loaded layer and is applied to whatever file you choose.
• The preview layer is itself a Points layer, so it appears in the Source and Target lists. Do not select it as the source.
• The matrix is fitted on the displayed points. For tables above 200,000 rows those points are a random subsample, so extents and centroid can differ very slightly from the full table.
• A few stray points stretch the bounding box and shrink the fitted scale. Remove debris first, or switch to manual.

---

3. Landmarks

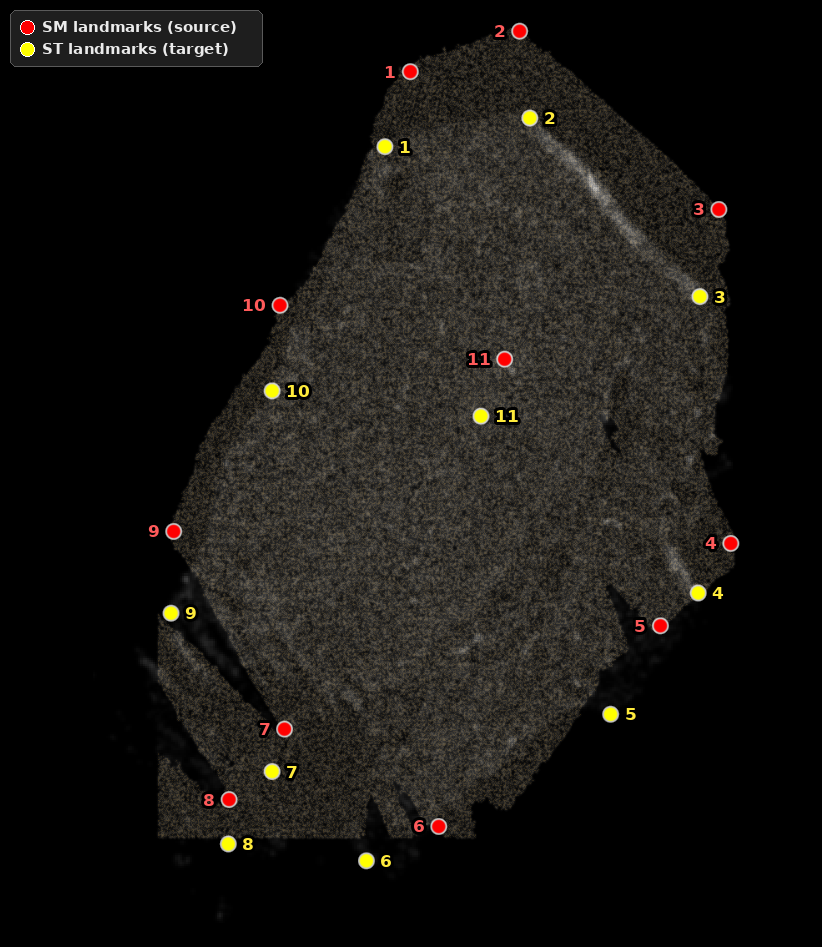

The 11 landmark pairs for the Sample 2 sequential example, numbered in order, over the pre-registered preview. Red: SM landmarks. Yellow: ST landmarks. Pair n in one layer corresponds to pair n in the other. The consistent offset between partners is the misalignment left after pre-registration.

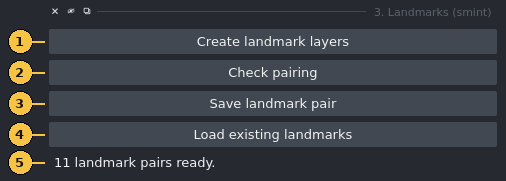

#	Control	What it does
1	Create landmark layers	Add ST landmarks (yellow) and SM landmarks (red) Points layers, or reuse them if they already exist. It then selects SM landmarks in add mode, so your next click places a point.
2	Check pairing	Report whether the pair is ready (see the messages below)
3	Save landmark pair	Ask for an output prefix and write <prefix>_sm_points.npy and <prefix>_st_points.npy
4	Load existing landmarks	Ask for an SM and an ST .npy file and replace the contents of both landmark layers
5	Status	Feedback from the buttons

Placing landmarks. You place landmarks with napari's own Points tools, directly on the data and in the data's coordinates, so no raster and no pixel-to-µm conversion is involved. Click a feature in SM landmarks, select ST landmarks in the layer list, switch it to add mode (the ⊕ button in the layer controls), and click the same feature there. Repeat, keeping the order the same in both layers.

Order is the correspondence

SMINT pairs landmarks by position in the list: point 1 with point 1, point 2 with point 2. If you skip or delete a point in one layer only, every later pair shifts by one. There is no error message. You just get a wrong registration.

Check pairing reports one of:

• No landmarks placed yet.
• Counts differ: 5 source vs 4 target. Each landmark needs a partner, in the same order.
• Need at least 3 pairs for an affine, have 2.
• 11 landmark pairs ready.

Save landmark pair refuses to save until the check passes. The files use the same format as STalign's point_annotator.py: a pickled {"1": [(x, y)], "2": [(x, y)], ...} dict in click order. That means landmark files from the plugin and from the annotator work interchangeably.

Tips

• Landmark markers are 14 coordinate units wide. On a section in µm, raise point size in the layer controls (the figure above uses 220) so you can see them.
• Use features both modalities show clearly: tissue corners, the ends of folds or tears, and the edges of large structures. Spread them over the whole section rather than clustering them.
• Landmarks are in the coordinates of the layer you click on. If you click on the Pre-registered preview, your SM landmarks are in the pre-registered frame, so the file you register in widget 4 must be the CSV written by Apply and save, not the original.

---

4. Register

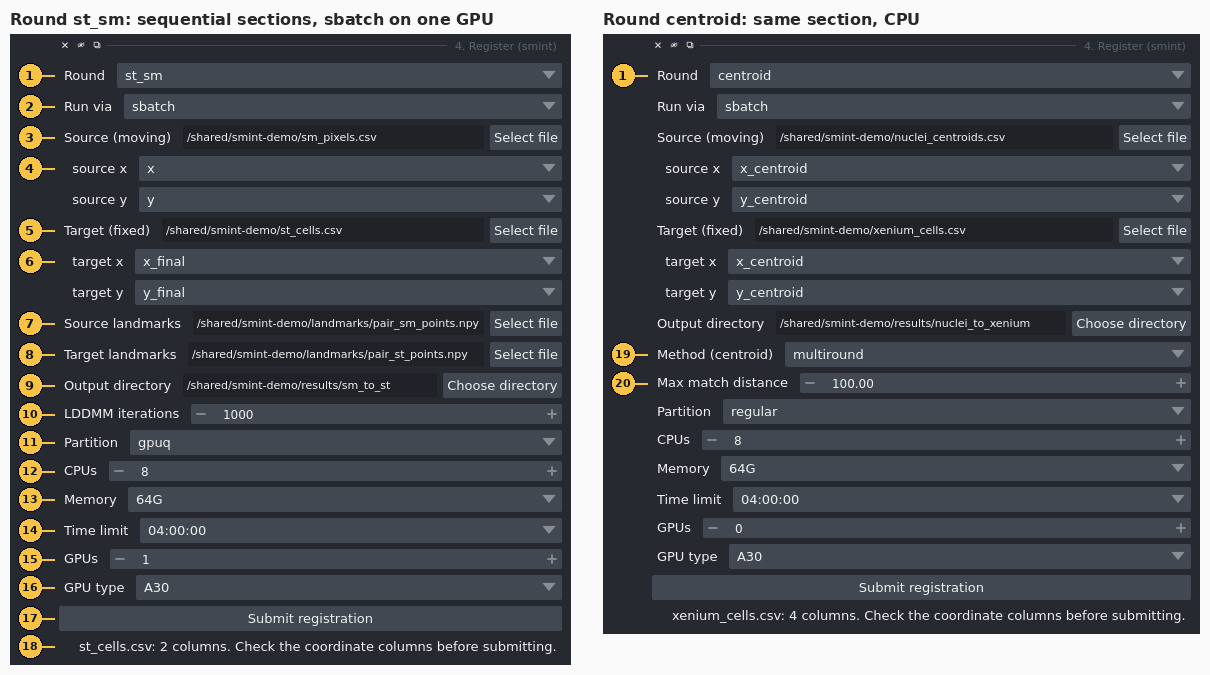

The Register widget filled in for each round. The fields that do not apply are hidden: landmarks and LDDMM iterations appear only for st_sm; method and match distance only for centroid.

#	Control	What it does
1	Round	st_sm: STalign LDDMM for sequential sections, initialised from landmarks. centroid: correspondence fitting for the same section.
2	Run via	sbatch submits a SLURM job. local starts a detached subprocess on the machine running napari.
3	Source (moving)	Source CSV. Choosing a file fills controls 4 from its header.
4	source x / source y	Which source columns to register. The widget guesses from the list in widget 1. Check the guess.
5	Target (fixed)	Target CSV
6	target x / target y	Which target columns to register. Same guess and same caution as 4.
7	Source landmarks	<prefix>_sm_points.npy (st_sm only)
8	Target landmarks	<prefix>_st_points.npy (st_sm only)
9	Output directory	Where the job spec, status, logs and results go. For sbatch it must be on shared storage.
10	LDDMM iterations	1–20,000 (default 1000; st_sm only)
11	Partition	The partitions sinfo reports on your cluster, so a typo cannot reach sbatch. The first one in the list is preselected, so check it.
12	CPUs	1–64 (default 8)
13	Memory	16G, 32G, 64G (default), 128G or 256G
14	Time limit	00:30:00, 02:00:00, 04:00:00 (default), 12:00:00 or 1-00:00:00
15	GPUs	0–4 (default 0)
16	GPU type	any plus the GPU types sinfo reports for the selected partition. Defaults to A30, the card registration is validated on, if that partition has one.
17	Submit registration	Validate, write the job, submit it and start watching it
18	Status	Column counts after you choose a file, then the job ID or PID after you submit
19	Method (centroid)	multiround (default), affine, ransac, tps or ransac+tps
20	Max match distance	Largest distance at which two centroids can be matched, in coordinate units (default 100)

Pick the coordinate columns explicitly

ST tables often carry several coordinate pairs from successive processing steps (here x_centroid beside x_new). The wrong pair gives a wrong registration without any error. The guess only follows the priority list, so always check controls 4 and 6.

What happens when you click Submit

1. Checks in the widget. You get an error notification if the source, target or output directory is missing, or if the st_sm round has no landmark pair.
2. Validation of the job spec. Every input file must exist. The partition must be one sinfo lists, and the GPU type must be one that partition offers. For sbatch, no path may be node-local (/tmp, /var/tmp, /dev/shm, /run). Any failure appears as a notification and in the status line, and nothing is submitted.
3. Submission. SMINT writes job_spec.json and status.json. With sbatch, it also writes and submits submit.sh (job name smint_st_sm or smint_centroid) and records the job ID. With local, it starts the worker and records the PID.
4. Watching. A background thread reads status.json every 10 seconds and asks SLURM about the job. A job that SLURM kills for running out of memory or time is therefore reported as failed, instead of staying "running" forever.
5. Result. On success, the transformed CSV is added as a lime Points layer named st_sm registered or centroid registered. The centroid round also shows Done. matched=… TRE <before> -> <after> (held-out). A failure shows the worker's error message.

Batch jobs need shared storage

An sbatch job runs on a different machine, so it cannot see node-local paths such as /tmp on the node where you run napari. SMINT rejects them before submitting. Without that check, the job would die with no logs at all, because its log directory would not exist on the compute node. Put inputs and the output directory on a shared file system.

GPU or CPU

To run LDDMM on a GPU, choose a GPU partition, set GPUs to 1 and leave GPU type at A30 (or choose another card). LDDMM uses CUDA when the job has a GPU and the CPU otherwise. For the Sample 2 sequential example (11 landmarks, 459,969 SM pixels, 53,622 ST cells), the registration took about 72 s on one A30.

Choose the GPU type deliberately. any requests --gres=gpu:1, which takes whichever card is free. On a partition with mixed hardware, that can be a card several generations older than the one you timed. Two combinations are allowed but only produce a warning in the job's log: GPUs on a partition that does not look like a GPU partition (the job sits in the queue), and a GPU partition with GPUs at 0 (no GPU is allocated, so the job runs on the CPU).

Known limitations of the st_sm round from the widget

Two behaviours of the current code affect st_sm jobs submitted from this widget. Until they are fixed, submit sequential registrations with the Python snippet below.

1. SM coordinates are rescaled in the worker. The worker reads the SM table with the defaults of read_sm_matrix, which multiply x/y by 10 (MALDI pixels to µm) and shift the data to non-negative coordinates. The widget does not change these defaults. Landmarks you place on the displayed coordinates are therefore in a different frame from the one the worker registers. Landmark files made with prepare_landmark_inputs and point_annotator.py already use the scaled frame and are not affected. We tested this on the Sample 2 example shown on this page, with pre-registered SM and landmarks placed in that frame. With the widget's defaults, the transformed SM pixels ended up tens of millimetres from the tissue. With the snippet below, the median distance to the nearest ST cell was 16.4 µm.
2. The output is transposed by default. x_transformed / y_transformed are written with orientation="dataset". Those coordinates are transposed relative to the ST cells (see Coordinate frames), so the st_sm registered layer does not overlay the target.

Rerun or adjust a job outside the widget

A job spec is plain data, so you can build one in Python with any parameter the worker accepts. You can also re-run an existing job_spec.json from a shell in the worker environment.

PythonCommand line

from smint.alignment.jobs import JobSpec, SlurmResources, poll, submit

spec = JobSpec(
    round="st_sm",
    inputs={
        "st_file": "st_cells.csv",
        "sm_file": "sm_prereg.csv",                  # written by "Apply and save"
        "st_points": "landmarks/pair_st_points.npy",
        "sm_points": "landmarks/pair_sm_points.npy",
    },
    params={
        "niter": 1000,
        "st_x_col": "x_final",
        "st_y_col": "y_final",
        # landmarks were placed on this CSV's own coordinates: read them unchanged
        "sm_kwargs": {"scale_xy": 1.0, "keep_positive": False},
        # write x/y_transformed as true xy in the ST frame
        "orientation": "stalign",
    },
    output_dir="results/sm_to_st",
    backend="sbatch",
    resources=SlurmResources(partition="gpuq", gpus=1, gpu_type="A30"),
)
print(submit(spec))                   # {'backend': 'sbatch', 'job_id': ..., ...}
print(poll(spec.output_dir)["state"])  # queued -> running -> completed

Run this from a directory on shared storage, in any environment that has SMINT. Set SMINT_WORKER_PYTHON as above, or pass worker_python= to JobSpec.

# In the worker environment: run an existing spec here, without SLURM
smint-register results/sm_to_st/job_spec.json
# equivalent:
python -m smint.cli.register results/sm_to_st/job_spec.json

The worker updates status.json in the spec's output directory as it goes. To change a parameter, edit params in job_spec.json first.

See the Jobs API reference for every field of JobSpec and SlurmResources.

---

Troubleshooting

SMINT Registration does not appear in the Plugins menu

Install SMINT into the environment napari runs from (pip install --no-deps -e /path/to/SMINT), then restart napari. To check that napari can find the plugin:

python -c "import npe2; pm = npe2.PluginManager.instance(); pm.discover(); print(pm.get_manifest('smint').display_name)"

The command should print SMINT Registration.

Partition 'x' does not exist on this cluster. Available: …

The partition was checked against sinfo before submission. Choose one from the list.

GPU type 'A30' is not offered by partition 'x'. Available: …

Choose a GPU partition, or set GPU type to any.

sbatch jobs run on a different machine, so node-local paths are unreachable

An input or the output directory is under /tmp, /var/tmp, /dev/shm or /run. Move it to shared storage, or use Run via local.

sbatch not found on PATH

napari is running on a machine without SLURM. Use local, or start napari on a cluster node.

Registration failed: STalign is not importable in this interpreter

The worker ran in the napari environment. Set SMINT_WORKER_PYTHON to the STalign environment's interpreter before launching napari.

The worker cannot import smint

The worker does not inherit PYTHONPATH, so SMINT must be installed in the worker environment itself.

SLURM reported OUT_OF_MEMORY / TIMEOUT

Raise Memory or Time limit and submit again.

SLURM completed but the worker did not report success; check the .err log

The job ended without writing a final status. The traceback is in smint_<round>_<jobid>.err in the output directory.

The status stays at "queued"

The job is waiting for resources. Check with squeue --me. GPU requests on a busy partition can wait a while.

Widget fails with missing 1 required positional argument: 'viewer'

napari passes the viewer only to QWidget or magicgui Widget subclasses and to magic_factory widgets. A plain function contribution is called with no arguments. Widgets that need the viewer must be classes.

stalign_available() is False in the napari environment

This is expected, because the napari environment has numpy 2. Only the worker environment needs STalign. Pre-registration and the centroid round work in either environment.

How the screenshots were made

The figures were captured from the running plugin, not mocked up. capture_screenshots.py registers the plugin manifest with npe2, docks the four widgets with add_plugin_dock_widget, presses their buttons, and saves viewer.screenshot() and QWidget.grab() images under a virtual X server. annotate_screenshots.py crops the images and adds the numbered callouts at widget positions recorded during capture.

The data are de-identified coordinates from Sample 2. The landmark pairs were set from the saved landmark files instead of being clicked, and the file paths displayed in the fields were replaced with neutral ones under /shared/smint-demo.

xvfb-run -s "-screen 0 1920x1200x24" \
  python docs/assets/napari/src/capture_screenshots.py \
    --source sm_pixels.csv --target st_cells.csv \
    --source-landmarks pair_sm_points.npy --target-landmarks pair_st_points.npy \
    --centroid-source nuclei_centroids.csv --centroid-target xenium_cells.csv \
    --out raw
python docs/assets/napari/src/annotate_screenshots.py raw docs/assets/napari

Next steps

• Sequential-section registration tutorial: the same st_sm workflow in code, from raw tables to the registered overlay.
• Same-section registration tutorial: the centroid round with multiround matching and snapping refinement.
• Running on HPC: partitions, GPUs and shared storage for batch jobs.
• Coordinate frames: dataset versus stalign orientation and why it matters for overlays.
