Tiling and stitching

A whole slide is too large for one Cellpose call, so SMINT cuts it into tiles, segments the tiles in parallel and joins the results. This page shows how the tiles overlap, why that creates duplicate cells, how the three stitching phases remove them, how cells and nuclei are reconciled, and how to choose tile_overlap. Every figure was made by running SMINT's own stitching code on synthetic outlines; only the Cellpose step is simulated.

flowchart LR
    A["Core tile grid<br/><code>generate_tiles</code>"] --> B["Each worker reads<br/>core + overlap"]
    B --> C["Cellpose on the<br/>expanded tile"]
    C --> D["Label masks: core only<br/>→ cells.zarr, nuclei.zarr"]
    C --> E["Outlines: whole expanded tile<br/>→ boundary cells reported twice"]
    E --> F["Stitch nuclei<br/>merge → trim → remove"]
    E --> G["Keep cells touching a nucleus,<br/>then stitch cells"]
    F --> H["Reconcile<br/>one nucleus, one cell"]
    G --> H
    H --> I["cells_ / nuclei_<br/>outlines.csv + summary.csv"]

Core tiles and the overlap

run_distributed_segmentation divides the image into a grid of square core tiles (tile_size, default 2048 px). Each Dask worker reads its core tile expanded by tile_overlap on every side (default 256 px, clipped at the image edge) and runs Cellpose on the whole expanded region. Then:

• It writes only the core of its label masks into the shared cells.zarr / nuclei.zarr, so no pixel is written twice.
• It extracts outlines from the whole expanded region, so a cell that crosses a core boundary is reported complete by at least one tile.

The price is that every cell inside an overlap band is reported by two tiles (four at a corner). That is what stitching removes.

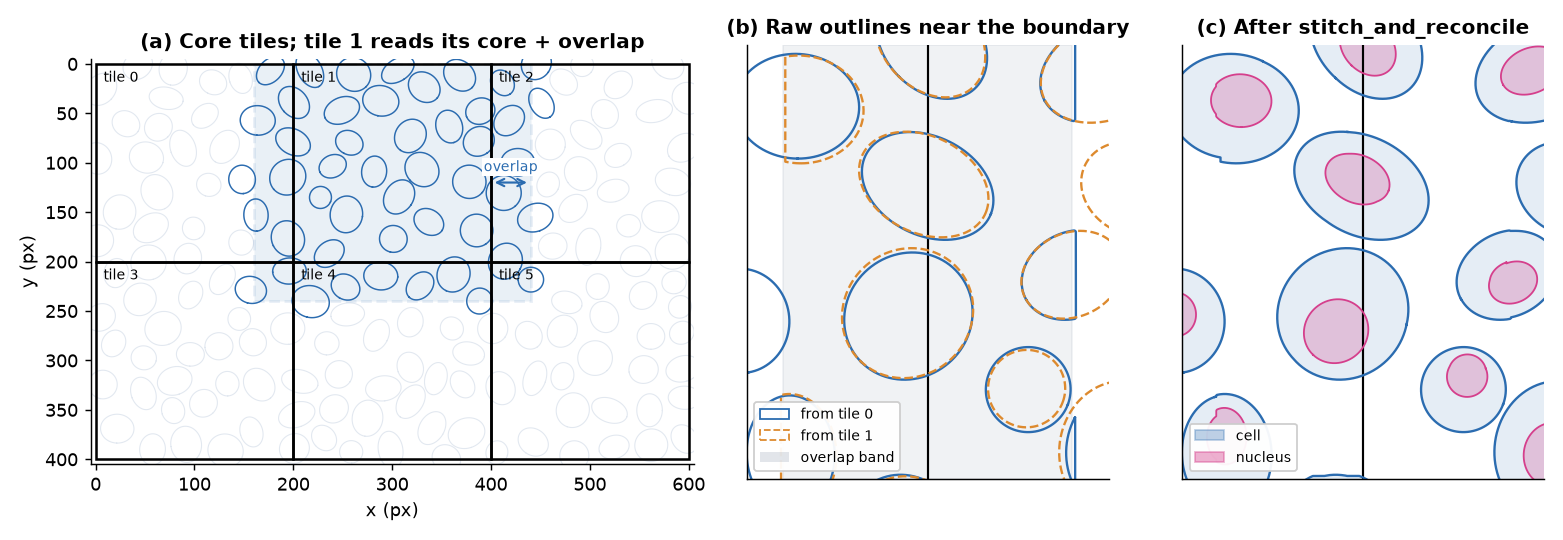

A synthetic 600 × 400 px field with 167 cells, cut into six 200 px core tiles with a 40 px overlap. (a) Tile 1 reads its core plus the shaded margin, so it sees every blue cell. (b) Near the boundary between tiles 0 and 1, both tiles report the same cells with slightly different outlines, and cells cut by the edge of a window come back as fragments. (c) After stitch_and_reconcile: one outline per cell, each with its nucleus. The six tiles reported 273 cell outlines; merging left 167, and 166 of them match a true cell with IoU > 0.5.

The three stitching phases

stitch_polygons (a Python port of stitching/stitching.Rmd) measures every intersecting pair by its maximum overlap: the intersection area divided by the smaller polygon's area. Then it runs three phases, each on the result of the last:

Phase	Applies to pairs with	Action	Why
Merge	max overlap > stitch_merge_thresh (0.5)	Union the pair; repeat until nothing more merges	The same cell seen by two tiles, or a fragment of it
Trim	max overlap < stitch_trim_thresh (0.25)	Remove the overlap from both	Neighbouring cells that touch
Remove	max overlap ≥ 0.25 (and not merged)	Drop the smaller polygon	A genuine conflict that neither merging nor trimming explains

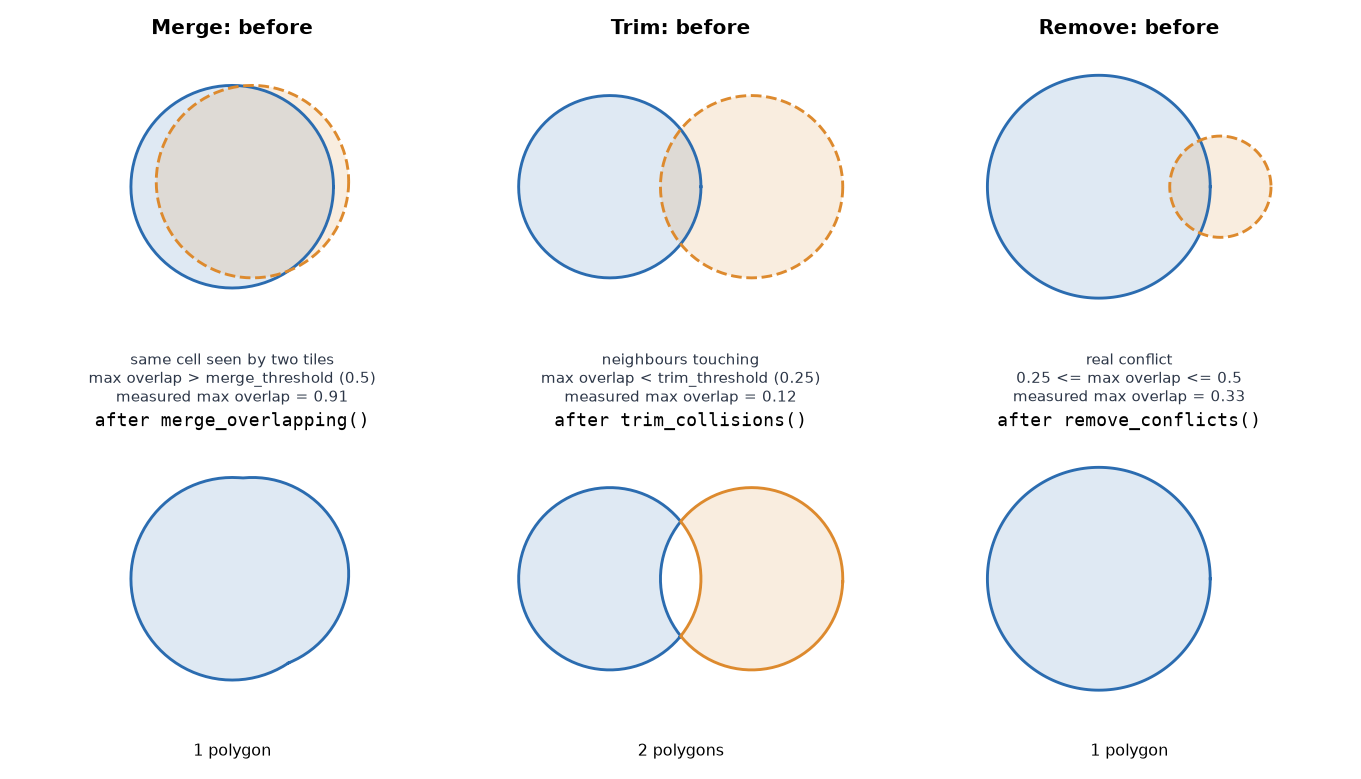

Each phase on a pair of polygons, with the maximum overlap measured by SMINT: 0.91 is merged into one polygon, 0.12 is trimmed so the two cells no longer overlap, and 0.33 loses the smaller polygon.

Nuclei are stitched first. Cells that touch no stitched nucleus are then dropped, and the remaining cells are stitched the same way. Both thresholds can be set in the distributed section of the config or as arguments; the defaults suit most tissue.

Reconciling cells and nuclei

Stitching makes each object type consistent on its own. Reconciliation (reconcile_cells_and_nuclei, on by default as reconcile_nuclei) makes the two consistent with each other, so every nucleus ends up inside exactly one cell:

1. Drop cells with no nucleus, and cells whose only nucleus barely touches them (less than 10% of the nucleus inside).
2. Grow a cell over a nucleus that is more than half inside it and touches no other cell.
3. Split a nucleus that straddles several cells. A piece is kept if it is at least half the nucleus, or, for a cell with no other nucleus, at least 40% (two cells) or 30% (three or more).
4. Remove duplicate, contained and mostly covered objects; cut any remaining overlap out of the larger one.
5. Assign each nucleus to its cell. A nucleus with no cell becomes a nucleus-only cell.

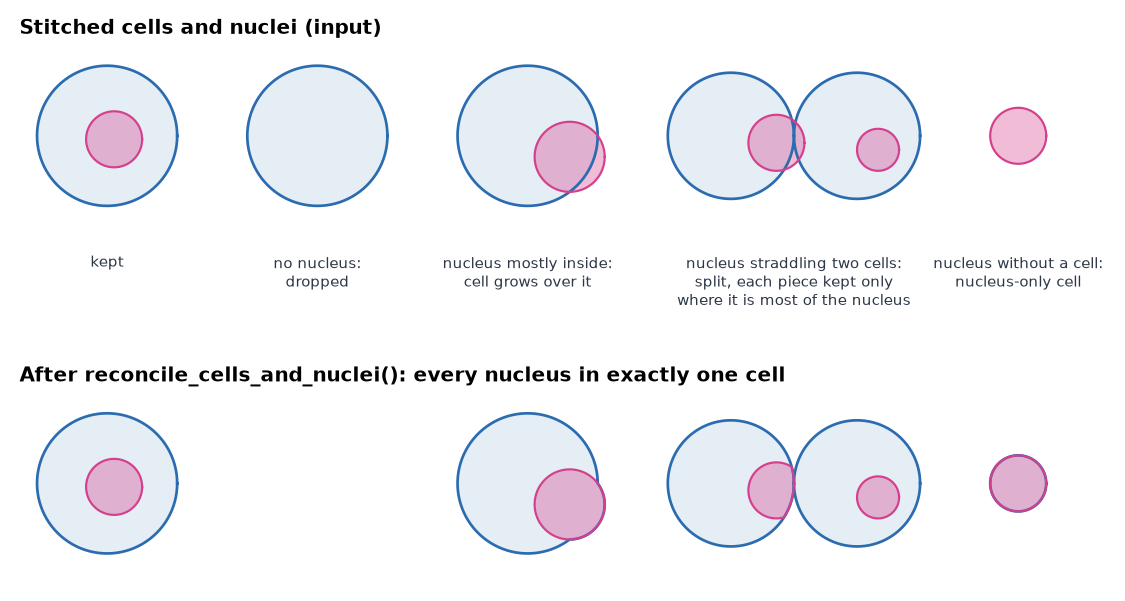

Five reconciliation cases run through reconcile_cells_and_nuclei: 5 cells and 5 nuclei in, 5 cells and 5 nuclei out, each nucleus in one cell. The cell without a nucleus is dropped and the nucleus without a cell becomes a cell of its own.

The output summaries record the result: n_nuclei per cell in cells_summary.csv, and the containing cell's global_cell_id as cell_id in nuclei_summary.csv. Before outlines are extracted, each worker also splits cells that contain several nuclei with a watershed seeded on the nuclei (split_multinucleated, on by default).

Choosing tile_overlap

Stitching can only rebuild a cell that at least one tile saw whole, or whose two fragments overlap enough to merge. Both are guaranteed when the overlap is larger than the radius of the largest cell, in pixels: a cell that crosses a core boundary then lies entirely inside the expanded window of the tile that holds its centre.

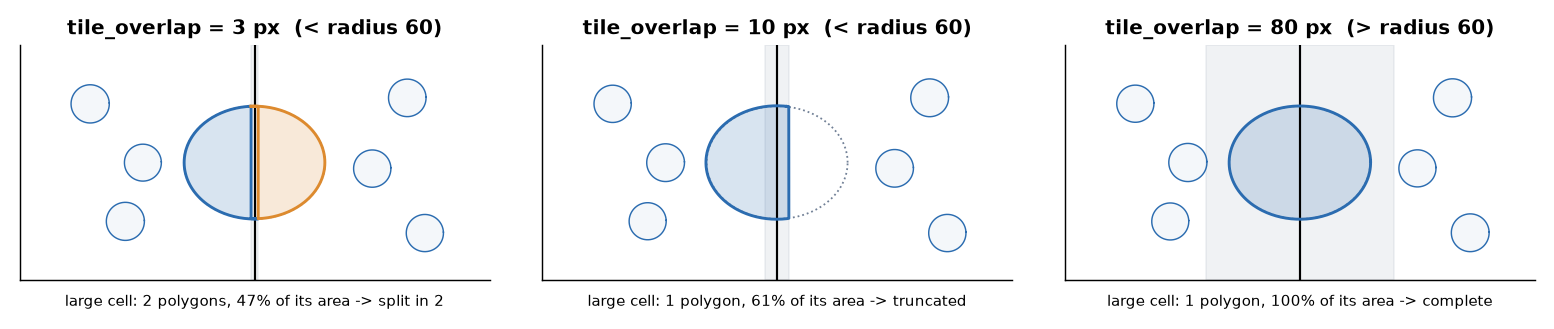

A cell 60 px in radius centred on a tile boundary, stitched with three overlaps. At 3 px the two fragments barely overlap, are trimmed, and the cell is split in two. At 10 px they overlap enough to conflict, and the smaller fragment is removed, leaving 61% of the cell. At 80 px, larger than the radius, each tile sees the whole cell and the copies merge into one complete outline.

Rules of thumb:

• Set tile_overlap above the largest cell radius you expect, not the typical one. The default of 256 px covers cells up to about 500 px across.
• A larger overlap costs extra Cellpose time on every tile: each tile reads (tile_size + 2 × tile_overlap)² pixels.
• Raise tile_size rather than shrinking the overlap if you need fewer, larger tiles. Very many tiles can also overflow the per-tile label IDs, which SMINT reports before it starts.

PythonCommand lineConfig (YAML)

from smint.segmentation import run_distributed_segmentation

out = run_distributed_segmentation(
    "slide.ome.tif", "seg_out/", config_path="segmentation.yaml",
    chunk_size=2048,          # core tile size, px
    tile_overlap=256,         # > largest cell radius, px
    stitch_merge_thresh=0.5,
    stitch_trim_thresh=0.25,
)

smint-segment-distributed \
    --image_path slide.ome.tif --output_dir seg_out/ \
    --config_path segmentation.yaml \
    --tile_size 2048 --tile_overlap 256

chunk_size: 2048
distributed:
  tile_overlap: 256
  stitch_merge_thresh: 0.5
  stitch_trim_thresh: 0.25
  reconcile_nuclei: true
  split_multinucleated: true

Stitching outlines you already have

The stitching functions work on any Shapely polygons in a consistent unit, so you can also use them on outlines from another tool:

import pandas as pd
from smint.segmentation.distributed_seg import stitch_and_reconcile

# Outline dicts as segment_tile / get_cell_outlines return them:
# {"x_coords": [...], "y_coords": [...]}. From vertex CSVs (global_cell_id, x, y):
def outlines_from_csv(path):
    return [{"x_coords": g.x.to_numpy(), "y_coords": g.y.to_numpy()}
            for _, g in pd.read_csv(path).groupby("global_cell_id")]

cell_outlines = outlines_from_csv("cells_outlines.csv")
nuclei_outlines = outlines_from_csv("nuclei_outlines.csv")
cells, nuclei, nucleus_cell = stitch_and_reconcile(cell_outlines, nuclei_outlines)
# nucleus_cell[k] is the index in `cells` of the cell holding nucleus k

Next steps

• All segmentation options: Segmentation.
• Run it across GPUs: Distributed segmentation on SLURM and Running on HPC.
• Config keys: Configuration.
• API: Segmentation reference.

Figures are generated by docs/assets/concepts/src/make_tiling_figures.py, which calls generate_tiles, stitch_and_reconcile, stitch_polygons and the individual phase functions.
