Coordinate frames¶

Most registration failures are not registration failures. They are two tables in different units, a flip applied in the wrong order, or x and y swapped on the way out of STalign. This page lists every frame your data passes through, the conversions between them, and which output column is in which frame, so you can check your inputs before you trust an overlay.

flowchart LR
    subgraph IMG ["Image frame · pixels"]
        SEG["Segmentation outputs<br/>x = column, y = row<br/>origin top-left"]
    end
    subgraph SMP ["SM frame · pixels"]
        SMX["MALDI matrix<br/>x, y on its own grid"]
    end
    subgraph ST ["ST frame · µm (the reference)"]
        XEN["Xenium cells<br/>x_centroid, y_centroid"]
        OUT["Registered outputs<br/>x_transformed, y_transformed"]
    end
    SEG -- "× pixel size<br/>(you do this)" --> UM["Nuclei in µm"]
    UM -- "centroid registration<br/>+ snapping" --> OUT
    SMX -- "scale_xy (default × 10)<br/>then pre-registration" --> PRE["SM roughly in<br/>the ST frame"]
    PRE -- "STalign LDDMM<br/>works in (row, col)" --> RC["(row, col) output"]
    RC -- "orientation = stalign" --> OUT
    RC -. "orientation = dataset<br/>(x and y swapped)" .-> BAD["Transposed:<br/>does not overlay ST"]

    classDef ref fill:#2b6cb02e,stroke:#2b6cb0
    classDef mov fill:#d53f8c2e,stroke:#d53f8c
    classDef bad fill:#dd8a2e2e,stroke:#dd8a2e
    class XEN,OUT ref
    class SEG,UM,SMX,PRE,RC mov
    class BAD bad

The spatial transcriptomics (ST) frame, in microns, is the reference. Every other dataset moves into it, and nothing ever moves the ST data.

Microns and pixels¶

Data	Units	Origin and axes
Xenium cells, transcripts	µm	Xenium's own frame
SMINT segmentation outputs	pixels of the full image	top-left; `x` is the column, `y` is the row
MALDI / SM matrix `x, y`	pixels of the SM grid	as exported by the instrument software
All registered outputs	µm, in the ST frame	as the ST data

SMINT registration parameters are in microns: max_distance (100), the multiround block sizes (500 and 250), snap_radius (10) and the LDDMM raster pixel size dx (30). Give them pixel coordinates and every one of those defaults is wrong by your pixel size.

Segmentation does not convert to microns for you. Multiply by the pixel size from your image metadata (OME-TIFF PhysicalSizeX / PhysicalSizeY) before registering:

import pandas as pd
import tifffile

with tifffile.TiffFile("slide.ome.tif") as tif:          # the image you segmented
    pixels = tifffile.xml2dict(tif.ome_metadata)["OME"]["Image"]["Pixels"]
pixel_size_um = float(pixels["PhysicalSizeX"])            # check PhysicalSizeXUnit if set

nuclei = pd.read_csv("seg_out/nuclei_summary.csv")       # x_centroid, y_centroid in pixels
nuclei[["x_centroid", "y_centroid"]] *= pixel_size_um
nuclei.to_csv("nuclei_um.csv", index=False)

For an OME file holding several images, ["Image"] is a list; pick the one you segmented.

If the post-stain image was not acquired in the Xenium frame, the nuclei are now in microns but still offset; bring them within max_distance with smint-alignment pretransform first (it fits scale from the extents and moves the centroid onto the reference).

SM pixel scaling: `scale_xy`¶

read_sm_matrix (used by register_sm_to_st, prepare_landmark_inputs and smint-alignment st-sm) applies three steps to the SM x, y, in this order:

Scale by scale_xy (default 10.0, --scale-xy): MALDI pixels to microns for the data SMINT was developed on. Set it to your SM pixel pitch.
Rotate 90° anticlockwise if rotate_left_90=True: (x, y) → (−y, x).
Shift so all coordinates are ≥ 0 (keep_positive=True).

Scale once

If you already pre-registered the SM table (its coordinates are in µm in the ST frame), register it with sm_kwargs={"scale_xy": 1.0, "keep_positive": False} (--scale-xy 1 --no-keep-positive on the command line). Otherwise it is scaled a second time, and pre-registered coordinates that fall below 0 are shifted, which moves the table away from its landmarks. The same applies to landmarks: they must be in the frame of the SM coordinates after read_sm_matrix. Landmarks from prepare_landmark_inputs are, because it rasterises with the same settings; landmarks picked on the CSV as stored (for example in napari) are not, unless scale_xy is 1 and keep_positive is False.

Pre-registration order¶

build_pretransform composes one 3 × 3 matrix from four operations, always in this order, about the source centroid:

flip → rotate → scale → translate

The order matters because flips and rotations do not commute: "flip, then rotate 30°" is a different transform from "rotate 30°, then flip". Scale is fitted after the flip and rotation, because bounding-box extents change when you rotate.

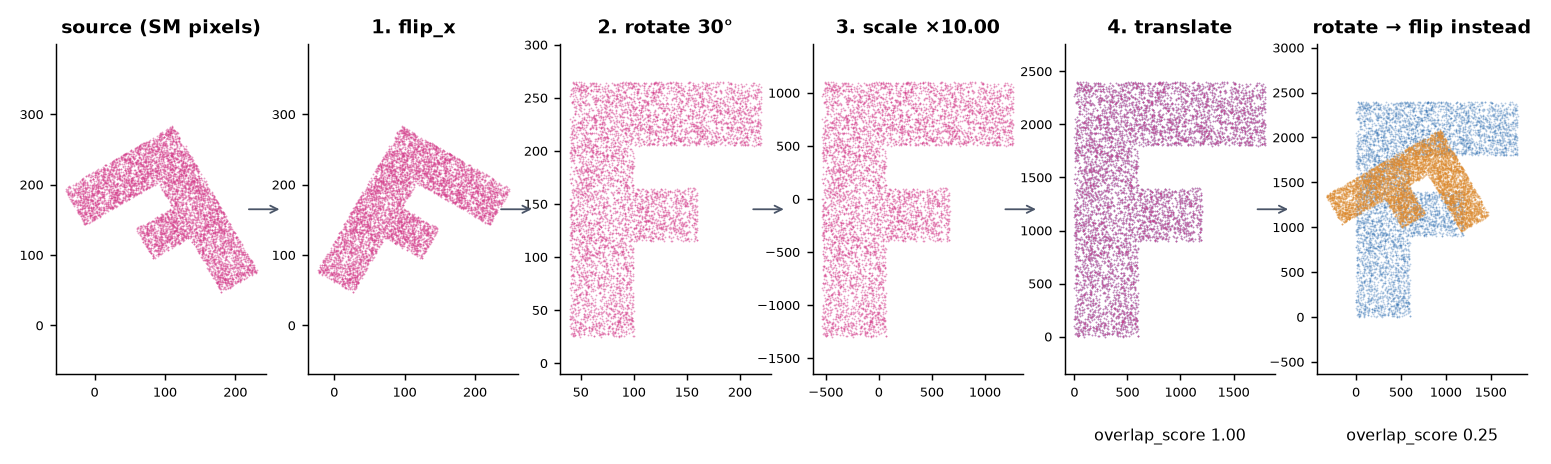

Pre-registration steps on a synthetic mirrored, rotated SM section — A synthetic SM section that is mirrored, turned 30° and on a grid ten times coarser than the reference. Each panel adds one operation from `build_pretransform(sm_xy, st_xy, rotation=30, flip_x=True)`; the fitted scale is 10.00 and the overlap score reaches 1.00. Applying the same rotation and flip in the other order leaves an overlap of 0.25. Plotted with y up.

from smint.alignment import build_pretransform, apply_pretransform, describe_pretransform, overlap_score

matrix = build_pretransform(sm_xy, st_xy, rotation=30, flip_x=True)  # (N, 2) x, y arrays
moved = apply_pretransform(sm_xy, matrix)
print(overlap_score(moved, st_xy))      # 1.0 on the synthetic data above
print(describe_pretransform(matrix))    # scale_x 10.0, rotation_deg -150.0, reflects True, ...

describe_pretransform is the quickest sanity check: reflects: True means the matrix contains a mirror, so a rotation of −150° here is "flip, then turn 30°", not a turn of −150°.

Which way is anticlockwise?

rotation is anticlockwise with the y axis pointing up. Images are usually displayed with y pointing down, where the same rotation looks clockwise.

STalign works in (row, column)¶

STalign stores images as [Y, X] and points as (row, col) = (y, x). SMINT converts at the edges so you can stay in (x, y):

Landmark files hold (x, y) per label (the format of STalign's point_annotator.py and of the napari plugin); load_landmarks swaps them to (row, col) for STalign.
napari layers are also (row, col); the plugin converts in both directions.
On the way out, transform_points (and so register_sm_to_st and smint-alignment st-sm) takes an orientation:

`orientation`	`x_transformed`, `y_transformed` are	Use it for
`"stalign"`	true `x, y` in the ST frame	Anything new: overlays, joins, the R scripts
`"dataset"` (default)	`x` and `y` swapped relative to the ST frame	Reproducing outputs of earlier pipeline runs

The default is "dataset" so that older analyses keep producing the same files. For new work, always pass orientation="stalign" (--orientation stalign).

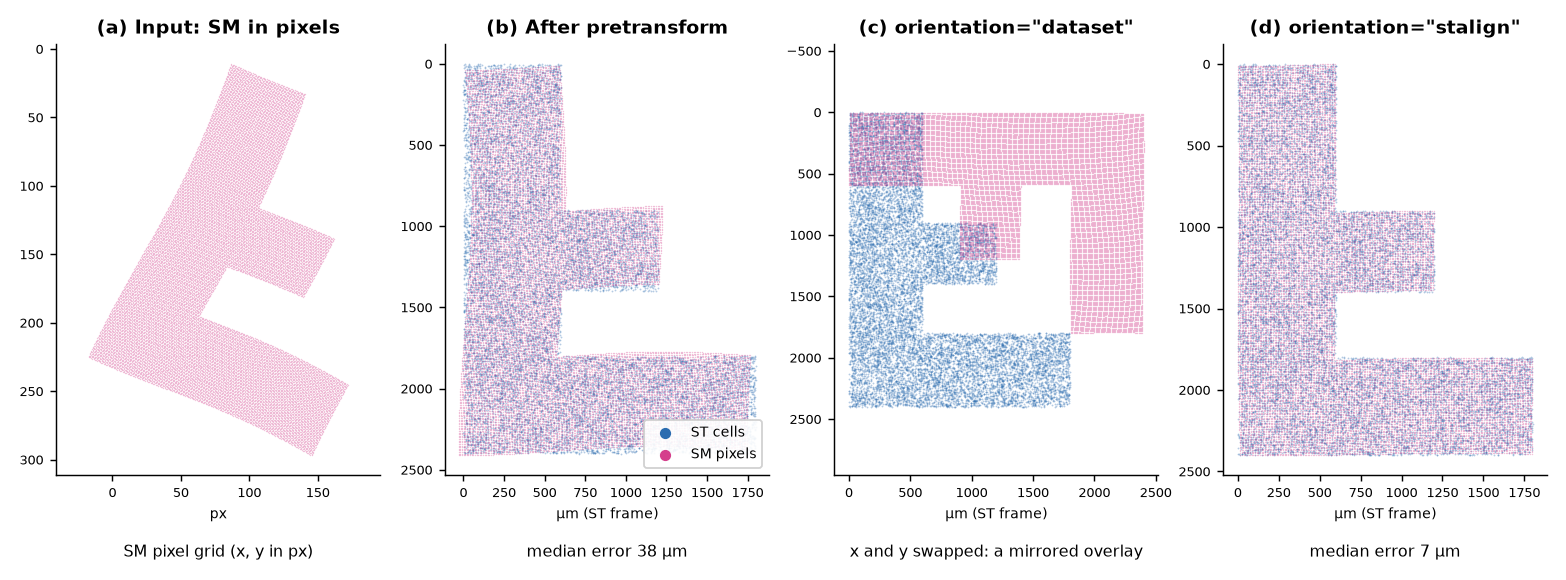

The same LDDMM registration written in both orientations — SMINT's sequential path run end to end on synthetic data: `smint-alignment pretransform`, five landmark pairs, then `register_sm_to_st` once per orientation. (a) SM input in pixels. (b) After pre-registration the median error is 38 µm. (c) With `orientation="dataset"` the output is the transpose of the right answer and does not overlay the ST cells. (d) With `orientation="stalign"` the median error is 7 µm. Plotted with y down, as an image.

The orientation is not stored in the CSV

register_sm_to_st records it in df.attrs["orientation"], which lives only in memory. Runs launched by smint-alignment or napari record it in job_spec.json in the output directory. If you call the function yourself, put the orientation in the output file name. A mirrored overlay along the diagonal is the signature of a "dataset" output plotted against ST.

Which column is in which frame¶

File	Columns	Frame
`cells_outlines.csv`, `nuclei_outlines.csv`	`global_cell_id`, `x`, `y`	Image pixels
`cells_summary.csv`, `nuclei_summary.csv`	`x_centroid`, `y_centroid`, `area`	Image pixels (area in px²)
`<base>_cells.csv`, `<base>_nuclei.csv` (`process_large_image`)	`global_cell_id`, `chunk_id`, `x`, `y`	Image pixels
`cells.zarr`, `nuclei.zarr`	label masks	Image pixels; per-tile IDs, not the stitched IDs
Pretransform output CSV	the source's own coordinate columns, overwritten	Reference (ST) frame
`<output>.transform.json`	`matrix`, `described`	Maps the original source onto the reference
`centroids_transformed.csv`	the source's original columns	Source frame, unchanged
	`x_transformed`, `y_transformed`	ST frame (snapped where `registration_status` is `snapped` or `assigned`)
	`x_transformed_smooth`, `y_transformed_smooth`	ST frame, transform only
	`target_index`	Row of the partner in the target table, −1 if none
`sm_transformed.csv`	`x`, `y`	SM frame after `scale_xy`, rotation and shift, not the original pixels
	`x_transformed`, `y_transformed`	ST frame with `orientation="stalign"`; transposed with `"dataset"`
Landmark `.npy`	`{label: [(x, y)]}`	The frame of the data you clicked on

Check before you register

smint-alignment columns my_table.csv lists a table's columns and shows which pair SMINT would pick. ST tables often carry several coordinate pairs from different processing stages, and registering the wrong pair fails silently. Pass the columns explicitly when in doubt.

Next steps¶

See where each conversion happens in the pipeline: The SMINT workflow.
File formats in full: Data formats.
Pre-registration in napari: napari plugin.
A complete sequential run: Sequential-section registration.

Figures are generated by docs/assets/concepts/src/make_registration_figures.py and docs/assets/concepts/src/make_stalign_figure.py.
